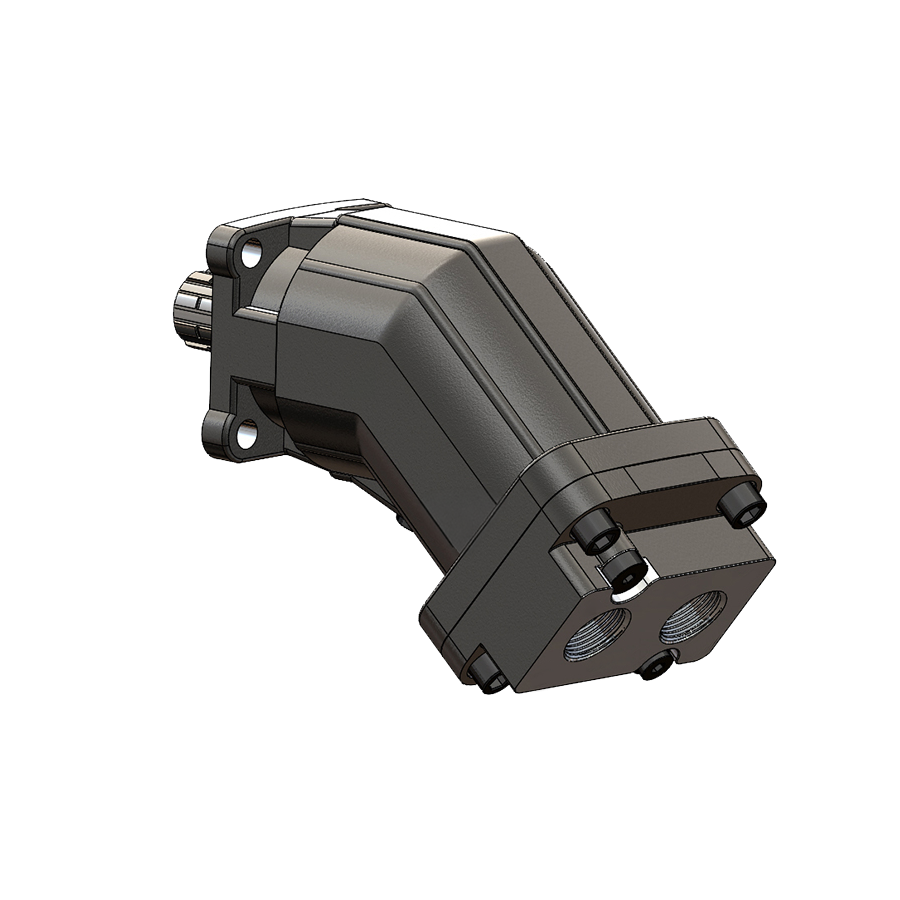

NMX 12S Series
40 degree bent shaft design for high power, small size, maximum efficiency and economical design. Flange and shaft are designed for direct mounting to truck PTOs. The permanently bent shaft motor creates a flow of hydraulic fluid. Designed for use in trucks, commercial vehicles and all stationary hydraulic applications. It is an open-circuit motor with a bent shaft and a rotary assembly.
NMX 12S Series Specifications
| Displacement | Theoretical Oil Flow at Motor Speed | Theoretical Oil Flow at Motor Speed | Max. Continuous Speed | Max. Intermittent Speed | Max. Continuous Pressure | Max. Peak Pressure | Torque bar | Torque at 350 bar | Weight (Without Accessories) | Weight (Without Accessories) | Version | Mounting Flange |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 12,00 cc | 12,00 cc at 1000 rpm | 18,00 cc at 1500 rpm | 8000 rpm | 8800 rpm | 440 bar | 480 bar | 0.18 m.N/bar | 66 m.N | 9,00 kg | 9,50 kg | DIN | 4 BOLT |
